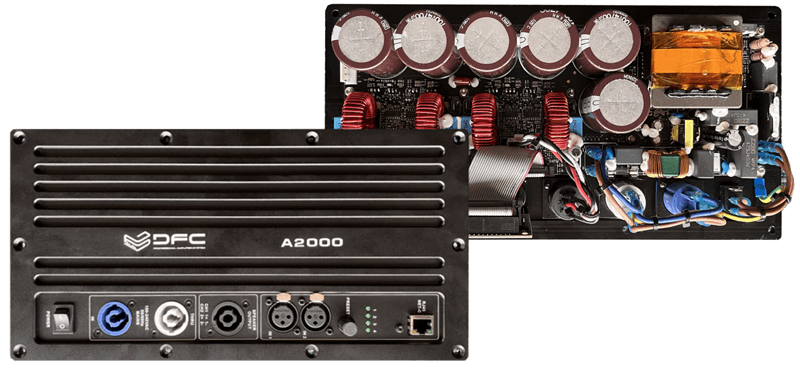

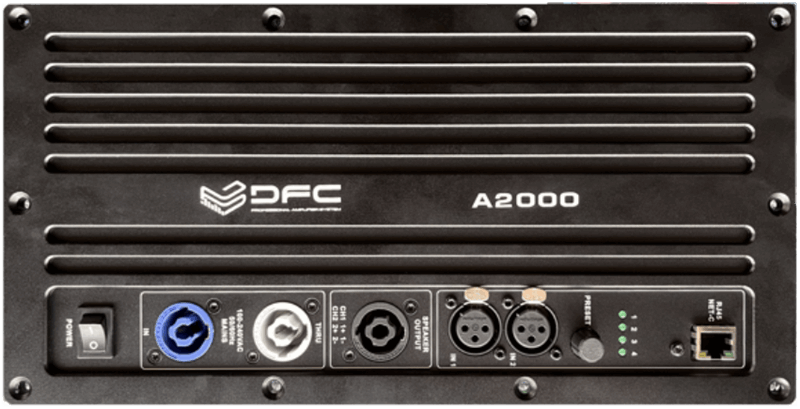

A2000

2, 3, 4 CHANNEL DSP AMPLIFIER MODULE
Specification
  • 2 analog input
  • 2, 3, 4 analog output



  • Power:
    • 8 ohm:
      2 x 1300 W
      2 x 400 W + 1300 W
      4 x 400 W
    • 4 ohm:
      2 x 2000 W
      2 x 800 W + 2000 W
      4 x 800 W

The A2000 is a two to four-channel high-power DSP professional power amplifier module developed by DFC based on the German DFM technology for entertainment sound reinforcement, performance sound reinforcement and other applications,Seamlessly embedded in NETCONTROL system. Based on 96kHz / 32Bit floating point operation high-efficiency DSP and high signal-to-noise ratio circuit, it provides accurate and powerful processing functions such as IIR, FIR, DEQ (dynamic equalization), supports large system power amplifier group debugging, with group gain, group delay, group IIR and other functions make debugging more handy.

Automatically detect the internal maximum temperature of the power amplifier and the state of the power amplifier to ensure that you know the working status of the power amplifier during use. Provide DSP signal and amplifier hardware double overload protection to make the audio system more secure.
DFM’s proprietary algorithm can provide the best performance and system protection for each sensor. Combined with IIR and FIR filters, it can generate a perfectly linear phase curve and significantly improve the impulse response. Achieve a more uniform, natural, transparent and realistic sound experience.
Two analog inputs are available, A/D converter, can produce 122dB impressive dynamics. D/A converter, can produce 123dB impressive dynamics.

Features

DSP

  • 96kHz sample rate
  • Inputs (user configuration):
    • level, adjustable,
    • Mute function
    • 15 band IIR-EQ, frequency, gain und quality adjustable
    • Delay, up to 350 ms
    • FIR-Filter with up to 1024 Taps
  • Outputs (Manufacturer configuration):
    • level, abjustable
    • Flexible routing with addition/subtraction
    • 2 crossover filter (up to 8. Order)
    • 10 band IIR-EQ, frequency, gain and quality adjustable
    • Delay, up to 40 ms
    • Phase is invertible
    • RMS-Limiter, Threshold/ Attack/ Release are adjustable
    • FIR-Filter with up to 1024 Taps

Application:

  • As active Speaker module

Dimensions:

  • W x D x H: 320 x 160 x 75 mm

Network

  • 10/100 MBit Ethernet
