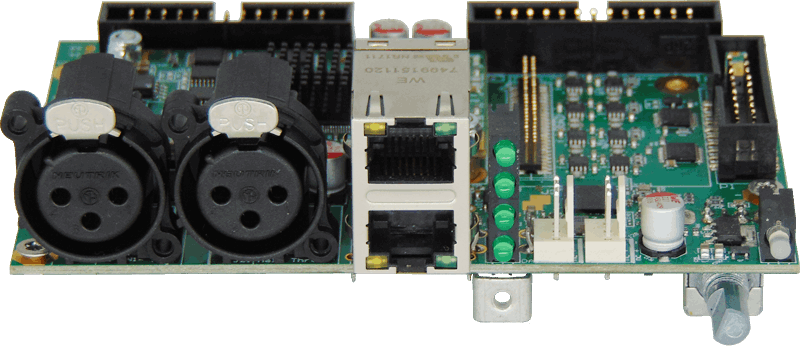

DMOD24SX

DMOD24SXH

GENERAL

  • 2 Analogue IN (XLR, symetric)
  • 1 AESOP IN (RJ45)
  • 4 Analogue OUT (symetric)
  • Encoder
  • Up to 24 Presets on internal Flash

OPTIONAL

  • 4 Analogue IN (symetric)
  • 1 AESOP IN
  • 1 AES IN
  • 1 AESOP OUT
  • DANTE IN
  • LCD-Display (2×20 characters)

COMPATIBLE WITH

The DMOD24SX is the latest generation of DFM DSP modules, replacing the popular DMOD24 module.

It can be combined with standard amplifier modules from Pascal® or Powersoft® and can be used for line arrays, audio subwoofers, active speakers and rack audio systems.

In addition, the completely new firmware is based on the new SHARCOS® technology, which meets the highest requirements for the next generation of fully controlled sound reinforcement.

Equipped with up to four inputs (analogue/AES), four outputs and an optional LCD display, the DMOD24SX provides all the components required for optimal audio processing, eliminating the need for additional AD or DA modules. The internal 96 kHz sampling rate offers sufficient scope for the most demanding requirements.

AUSTATTUNG

DSP

  • 96kHz sample rate
  • Inputs (User Configuration):
    • Level, adjustable
    • Mute-Funktion
    • 15 band IIR-EQ, frequency, gain and quality adjustable
    • Delay, up to 400 ms
    • FIR-Filter with up to1024 taps
  • Outputs (Manufacturer Configuration):
    • Level, adjustable
    • Flexible routing with addition/subtraction
    • 2 crossover filter (up to 8. order)
    • 10 Band IIR-EQ, frequency, gain and quality adjustable
    • Delay, up to 40 ms
    • Phase invertible
    • RMS-Limiter, Threshold, Attack, Release adjustable
    • FIR-Filter with up to 1024 Taps

Display optionen:

  • Usable on-board LEDs and button
  • Usable extern 2×20 character display
  • Custom display
  • external LEDs (8)

Application:

  • As active speaker modul
    • direct with plug, gain poti, preset LEDs and Pushbutton on-board.
    • with external IO-board

DIMENSIONS:

  • B x T x H: 115 x 80 x 30 mm

Network:

  • 10/100 MBit Ethernet
