DMOD24SXH

DMOD24SXH

GENERAL

  • 1 Analogue IN (XLR, symetrc)
  • 1 Analogue THRU (XLR)
  • 1 AESOP IN (RJ45)
  • 4 Analogue OUT (symetric)
  • LCD display (2×20 characters)
  • Encoder
  • Up to 24 Presets on internal Flash

OPTIONAL

  • 4 Analogue IN (symetric)
  • 1 AESOP IN
  • 1 AES IN
  • 1 AESOP OUT
  • DANTE IN

COMPATIBLE WITH

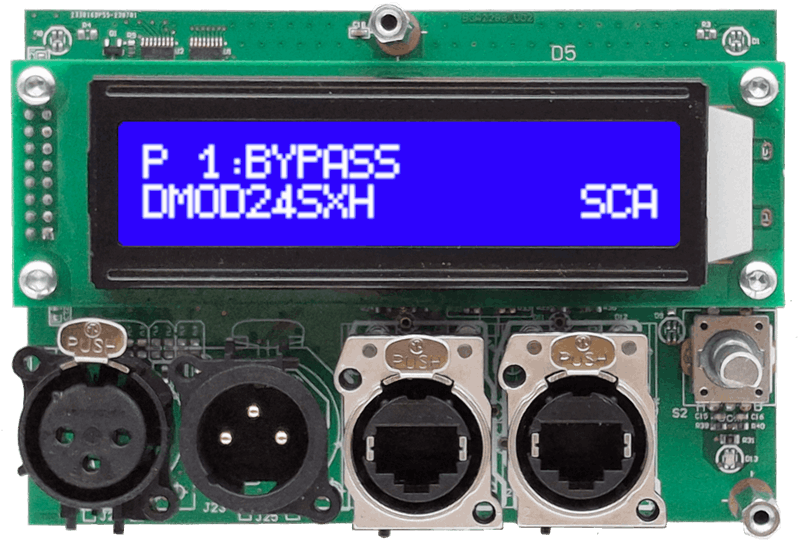

The DMOD24SXH is a module from the new DMOD24SX module series, equipped with an IO interface with a 2×20 character display, 2 x XLR (IN/THRU), 2 x network (with AESOP) and an encoder knob.

It can be combined with standard amplifier modules from Pascal® or Powersoft® and can be used for line arrays, audio subwoofers, active speakers and rack audio systems.

In addition, the completely new firmware is based on the new SHARCOS® technology, which meets the highest requirements for the next generation of fully controlled sound reinforcement.

Equipped with up to two inputs (analogue/AES), four outputs and an integrated LCD display, the DMOD24SXH provides all the components required for optimal audio processing, eliminating the need for additional AD or DA modules. The internal 96 kHz sampling rate offers sufficient scope for the most demanding requirements.

DSP

  • 96kHz sample rate
  • Inputs (User Configuration):
    • Level, adjustable
    • Mute-Funktion
    • 15 band IIR-EQ, frequency, gain and quality adjustable
    • Delay, up to 400 ms
    • FIR-Filter with up to1024 taps
  • Outputs (Manufacturer Configuration):
    • Level, adjustable
    • Flexible routing with addition/subtraction
    • 2 crossover filter (up to 8. order)
    • 10 Band IIR-EQ, frequency, gain and quality adjustable
    • Delay, up to 40 ms
    • Phase invertible
    • RMS-Limiter, Threshold, Attack, Release adjustable
    • FIR-Filter with up to 1024 Taps

Application:

  • As active speaker modul
    • direct with plug, gain poti, preset LEDs and Pushbutton on-board.
    • with external IO-board

DIMENSIONS:

  • B x T x H: 115 x 80 x 50 mm

Network:

  • 10/100 MBit Ethernet
