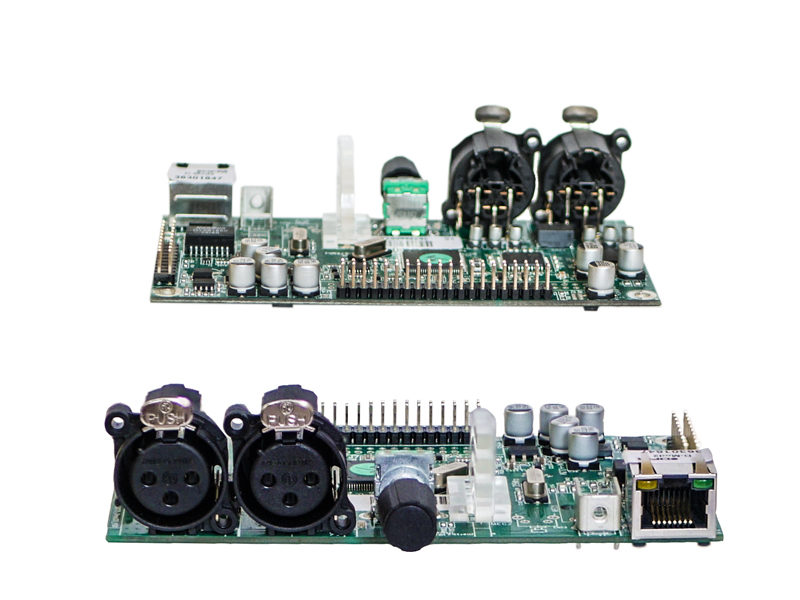

The DFM DMOD2SX is the supreme class of our DSP-Module series.
  • Up to 2 inputs analog + digital, symetric
  • Up to 4 analogue outputs
  • Up to 24 presets on internal Flash
  • Optional Levemetering




The DMOD2SX module is the new supreme class of our DSP-Module series. This module comes with our powerful 4. Generation DSP core technology featuring 96 kHz audio clock frequency and extended network capabilities. Thanks to it’s on board 2 input channels (analogue + digital) and 4 analogue output channels there is no need for external AD or DA circuits. Since the DMOD2SX is designed to create with the X-PRO, M-PRO and S-PRO amplifier modules from Pascal you also can use it with the amplifier module of your choice.

The compact DMOD2SX module with its comprehensive performance is the right choice for the professional manufacturer who design networked PA systems. The module offers outstanding operating and controlling capabilities for large and complex PA systems. The PC software “NetControl” allows therefore grouping and remote controlling of various modules. The outstanding audio experience is based on well designed analog circuits and an internal 96 kHz high performance audio processing.

DMOD2SX Features


  • 96kHz sample rate
  • Inputs (user configuration):
    • level, adjustable,
    • Mute function
    • 15 band IIR-EQ, frequency, gain und quality adjustable
    • Delay, up to 400 ms
  • Outputs (Manufacturer configuration):
    • level, abjustable
    • Flexible routing with addition/subtraction
    • 2 crossover filter (up to 8. Order)
    • 10 band IIR-EQ, frequency, gain and quality adjustable
    • Delay, up to 40 ms
    • Phase is invertible
    • RMS-Limiter, Threshold/ Attack/ Release are adjustable
    • Optional: FIR-Filterwith 512 Taps

Display options:

  • Usable on-board LEDs and button
  • Usable external 2×20 character display, encoder on-board (preset change, Gain)
  • Custom Display
  • Usable external LEDs


  • As active Speaker module
    • direct with Plug, Gain-Poti, Preset LEDs and Pushbutton On-Board.
    • with external IO-Board


  • W x D x H: 130 x 65 x 30 mm


  • 10/100 MBit Ethernet
